SGL Bi-Metal Thermometers Rigid Stem

	Bi-Metal 63mm, 100mm and 150mm dial sizes, black case, chrome bezel.
	Bottom entry (vertical) or centre back entry (horizontal). To suit pockets with 45mm, 63mm, 100mm or 150mm immersion. 1/2" BSP. All models listed are complete with brass pocket. +/- 1% FSD accuracy.
	The above can also be supplied with the following please specify when ordering:-
	Stainless Steel pockets, 63mm and 100mm immersion add "ss" to product number.(i.e. 4BM9ss).
	Brass pockets 100mm immersion + 50mm neck extension can also be supplied with Bottom Entry (Vertical) and Centre Back Entry (Horizontal) 0-120°C&F Only.
	Other ranges can be supplied in C or F only.
	All stainless steel (for outside use).
	Other than standard pocket lengths.

Page 13.JPG (40265 bytes)

SGL Vapour Pressure Thermometers Rigid Stem.

Vapour pressure, 100mm and 150mm dial thermometers for direct reading. Standard finish black case and bright bezel. Rigid stem models are bottom entry (vertical) or lower back entry (horizontal). The thermometers listed are to suit 63mm & 100mm immersion pocket lengths 1/2" BSP.
Manufactured to comply with BS 5235 DoE M & E 100. M & E6 +/- 1% FSD accuracy.
All models listed are complete with brass pocket.

The above can also be supplied with the following, please specify when ordering:-

	150mm x 1/2" BSP brass or stainless steel pockets.
	63mm or 100mm x 1/2" BSP mild steel or stainless steel pockets.
	Brass and stainless steel pockets with 50mm neck extension.

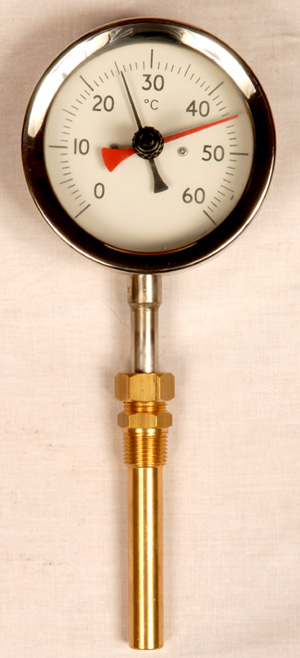

	Drag pointer gauges 100mm & 150mm dial. Where the drag needle stays at its highest reached temperature until it is manually reset.
	Bottom entry 90º to back, 9 o’clock and 3 o’clock,etc.
	Non standard stem lengths and diameters.
	The above thermometers can also be supplied with full calibration certificates.
	Brass or stainless steel Weatherproof cased, for outside use. (See back page).
	Perspex windows also available from stock.
	3 hole back flanged for remote reading surface mounting also available from stock.

Page 14.JPG (43840 bytes)

SGL Gas Filled Thermometers Rigid Stem.

Gas filled, 100mm and 150mm dial thermometers for direct reading. Standard finish black case and bright bezel. Rigid stem models are bottom entry (vertical) or centre back entry (horizontal). The thermometers listed are to suit 63mm & 100mm immersion pocket lengths 1/2" BSP.
Manufactured to comply with BS 5235 DoE M & E 100. M & E6 +/- 1% FSD accuracy.
All models listed are complete with brass pocket.

The above can also be supplied with the following, please specify when ordering:-

	150mm x 1/2" BSP brass and stainless steel pockets.
	63mm or 100mm x 1/2" BSP mild steel or stainless steel pockets.
	Brass and stainless steel pockets with 50mm neck extension.
	Drag pointer gauges 100mm & 150mm dial. Where the drag needle stays at its highest reached temperature until it is manually reset
	Lower back entry, bottom entry 90º to back, 9 o’clock and 3 o’clock,etc
	The above can also be supplied duct mounted with 3 hole sliding flange.
	Stainless steel Weatherproof cased, for outside use.
	Non standard stem lengths and diameters.
	The above thermometers can also be supplied with full calibration certificates.
	Perspex windows also available from stock.
	3 hole back flanged for remote reading surface mounting also available from stock.

Page 15.JPG (39906 bytes)

SGL Mercury in Steel Thermometers Rigid Stem.

	Mercury in steel, 100mm and 150mm dial thermometers for direct reading. Standard finish black case and bright bezel. Rigid stem models are bottom entry (vertical) or centre back entry (horizontal). The thermometers listed are to suit 63mm & 100mm immersion pocket lengths 1/2" BSP. Manufactured to comply with BS 5235 DoE M & E 3 M & E 100. M & E6 +/- 1% FSD accuracy. All models listed are complete with brass pocket.
	The above can also be supplied with the following, please specify when ordering:-
	150mm x 1/2" BSP brass and stainless steel pockets.
	63mm or 100mm x 1/2" BSP mild steel or stainless steel pockets.
	Brass and stainless steel pockets with 50mm neck extension.
	Drag pointer gauges 100mm & 150mm dial. Where the drag needle stays at its highest reached temperature until it is manually reset.
	Lower back entry, bottom entry 90º to back, 9 o’clock and 3 o’clock, etc
	Stainless steel Weatherproof cased, for outside use.
	Non standard stem lengths and diameters.
	The above thermometers can also be supplied with full calibration certificates.
	Perspex windows also available from stock.
	3 hole back flanged for remote reading surface mounting also available from stock.

Page 16.JPG (42078 bytes)

SGL V.Line Pipeline Thermometers

	200mm case. Anodised aluminium body. Blue filled. Complete with 1/2" BSP brass pockets.
	Can also be supplied with the following please specify when ordering:-
	Shorter case than standard.
	Brass body.
	Mercury filling
	Longer pocket lengths.
	Other than standard ranges.
	Stainless steel pockets.
